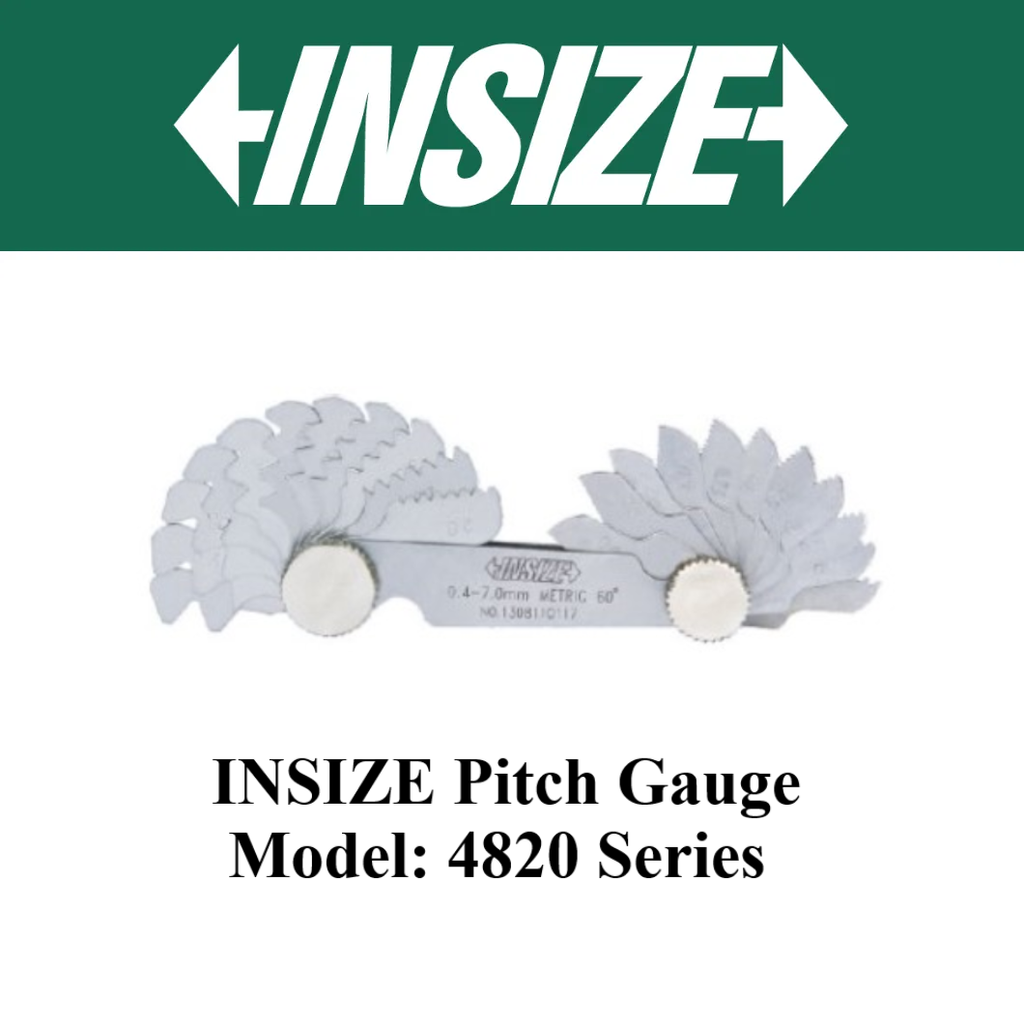

INSIZE Pitch Gage / Gauge (Metric 60° & Whitworth 55° Screw / Unified 60° Screw) - Model: 4820 Series

Product Description:

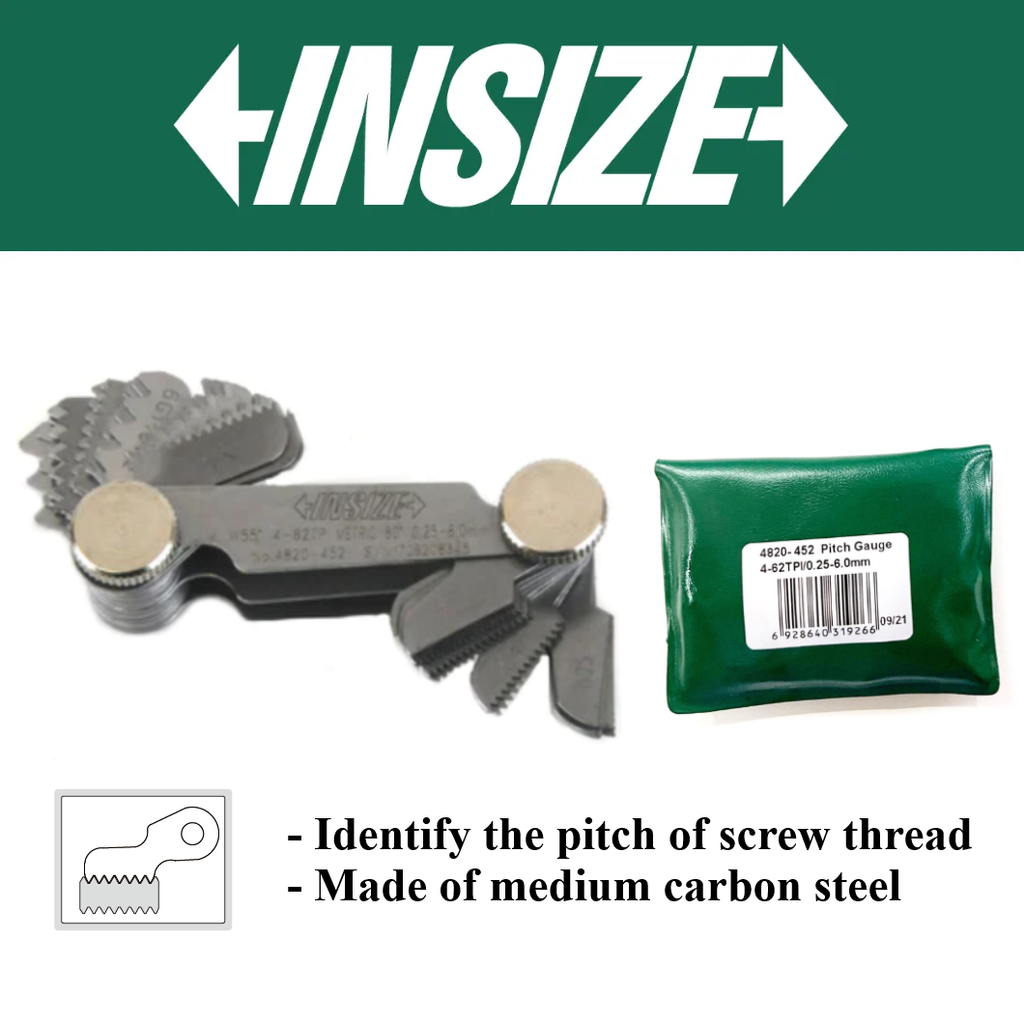

• Made of medium carbon steel

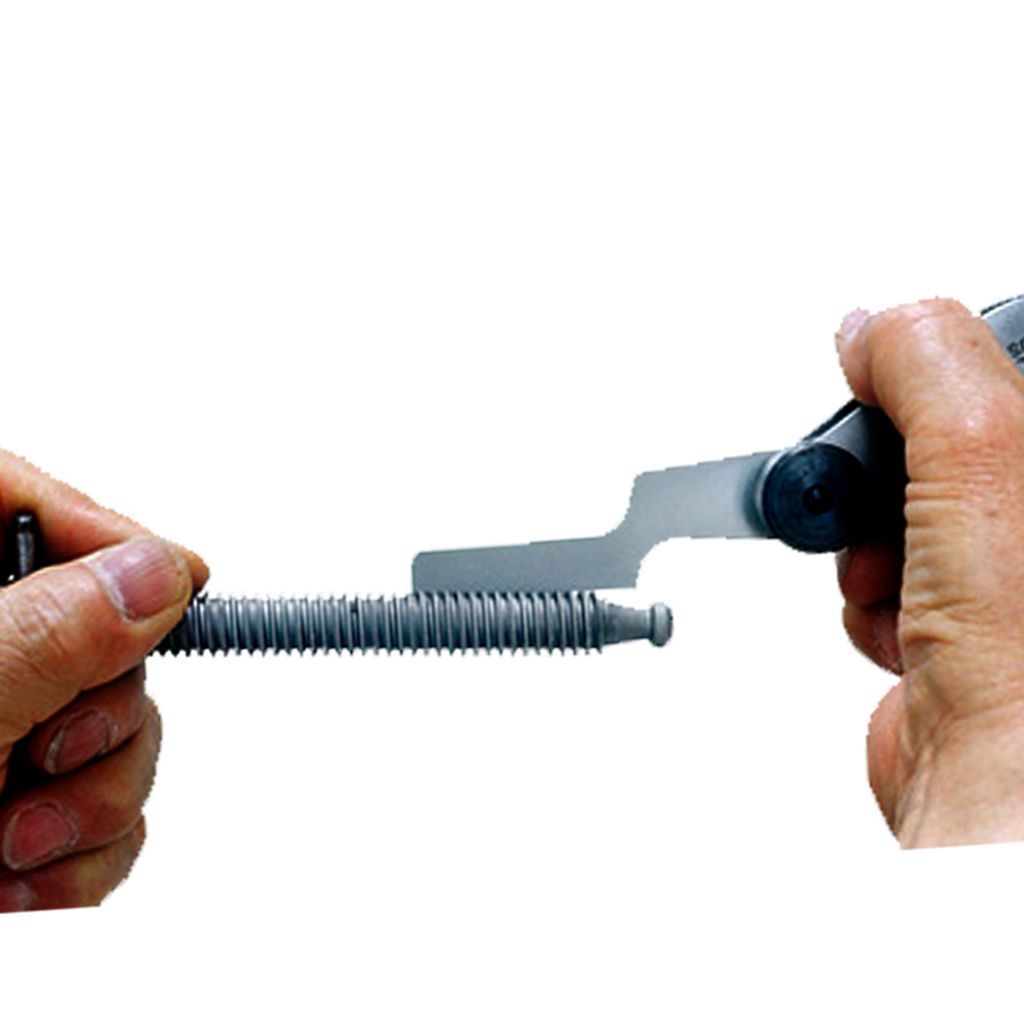

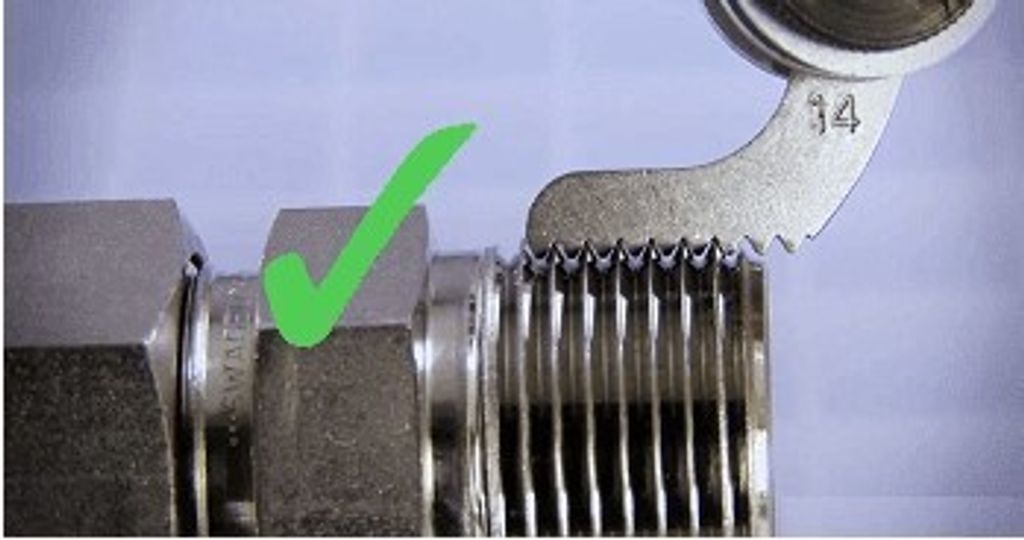

• To identify the pitch of screw thread

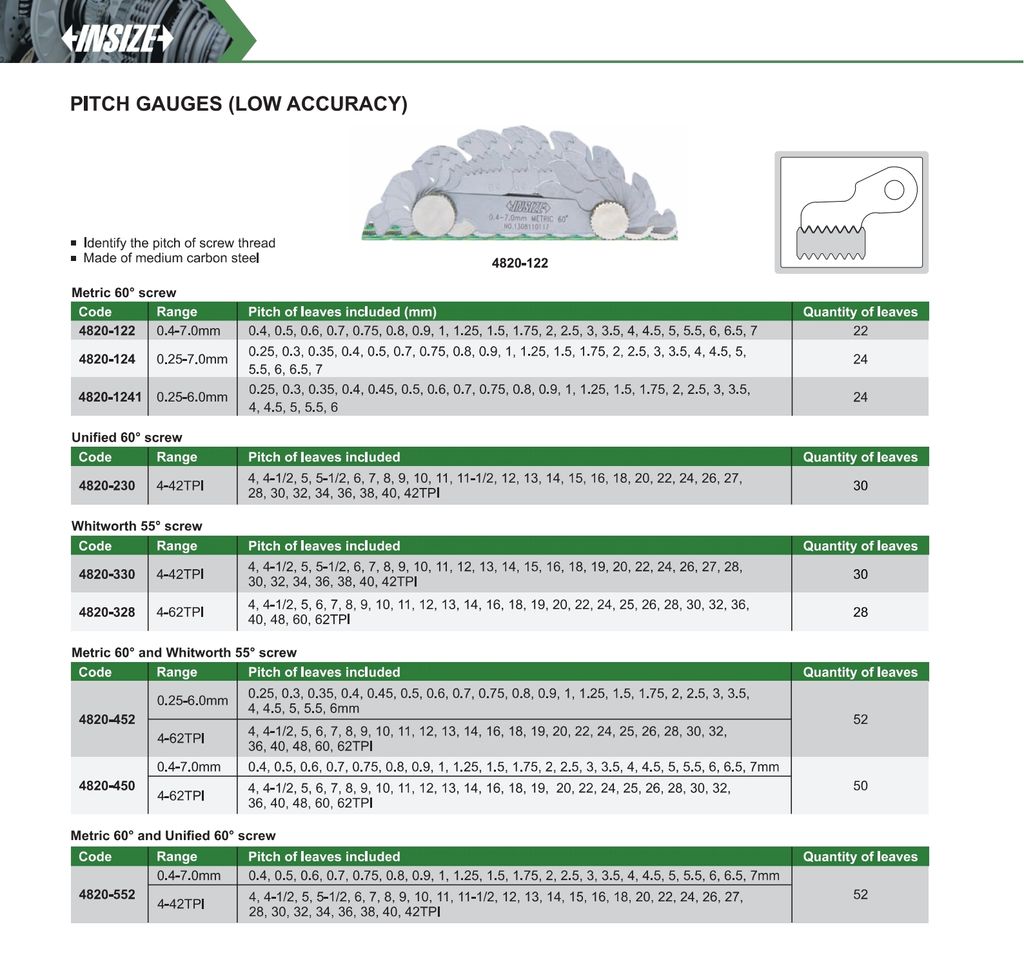

ProductSpecification:

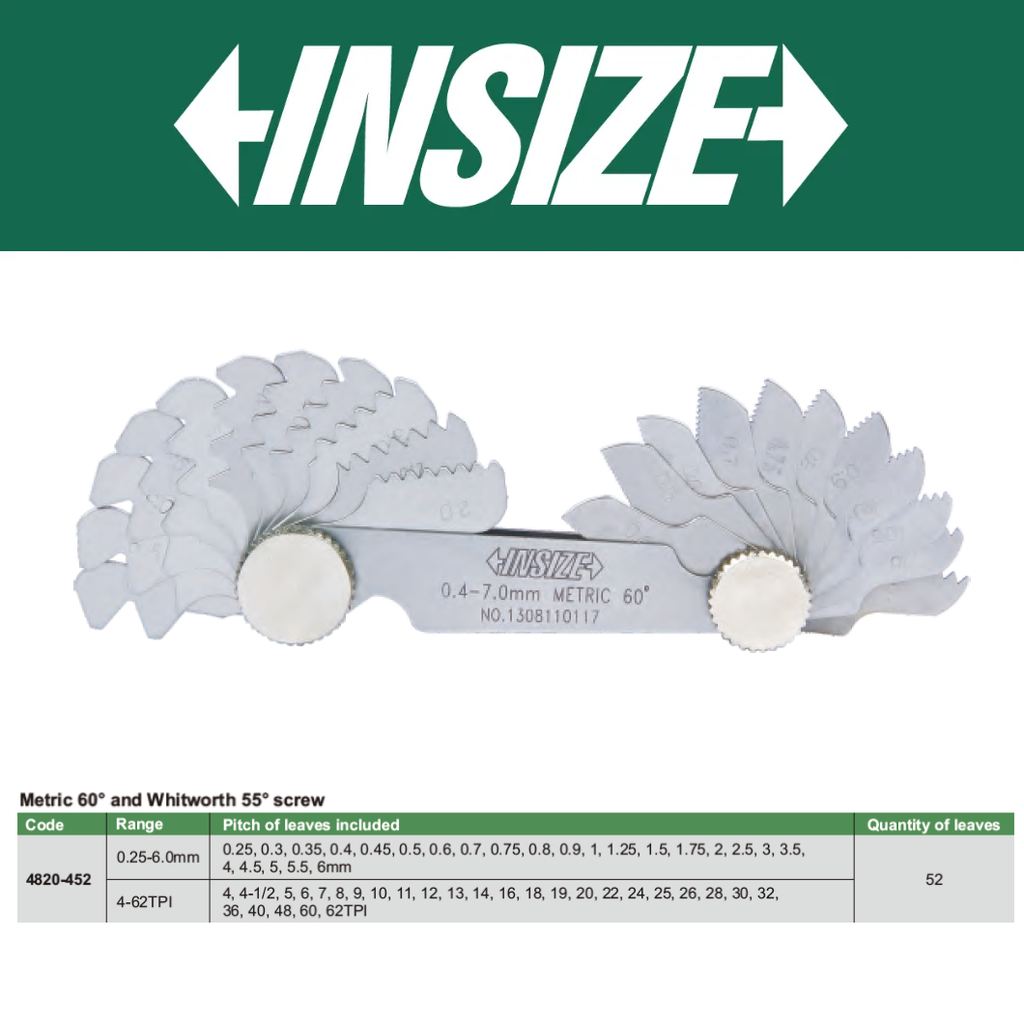

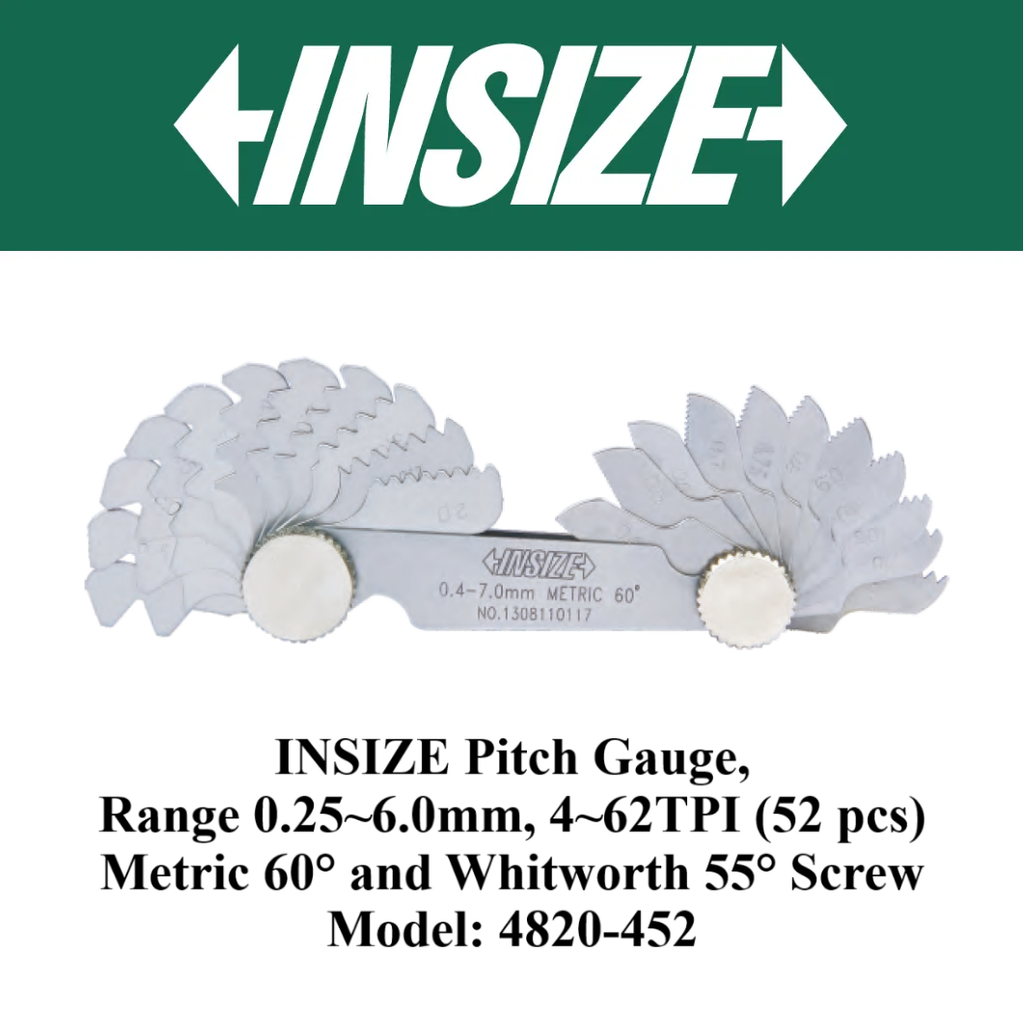

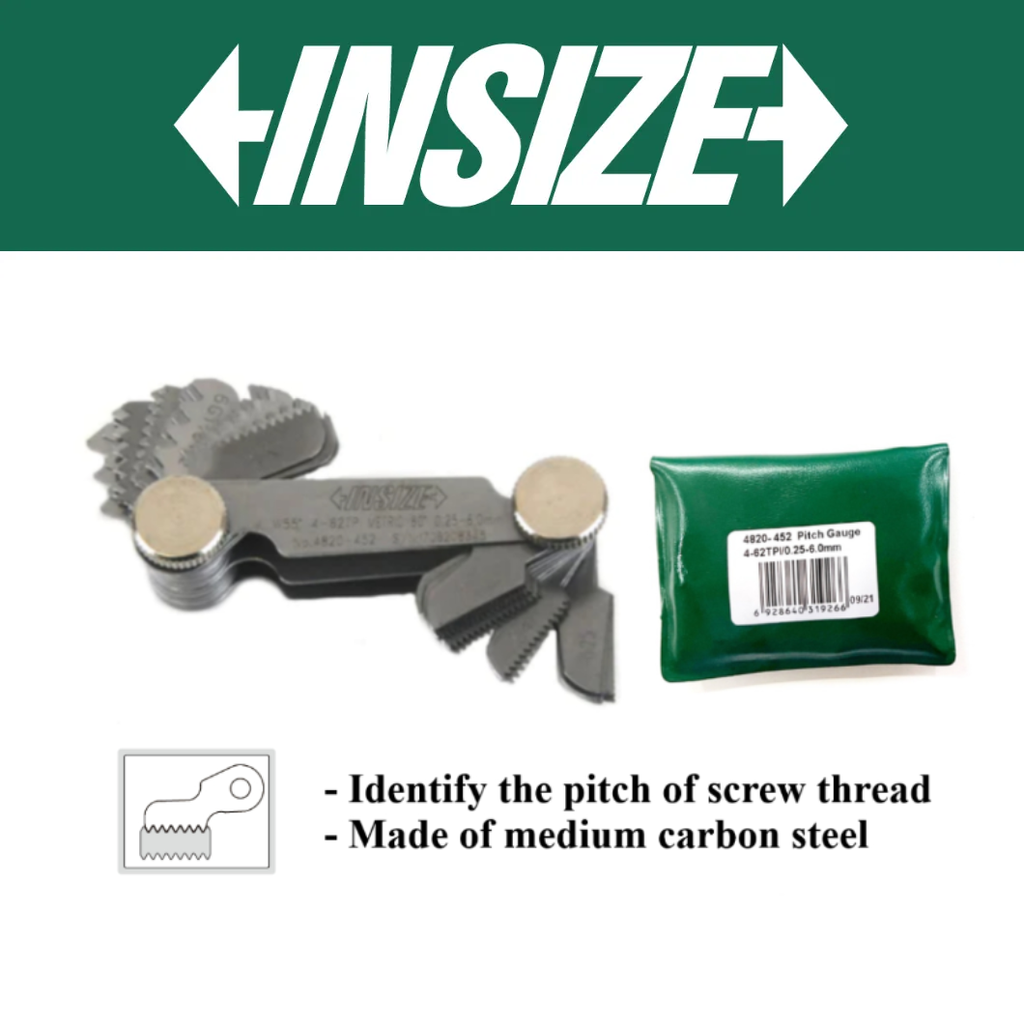

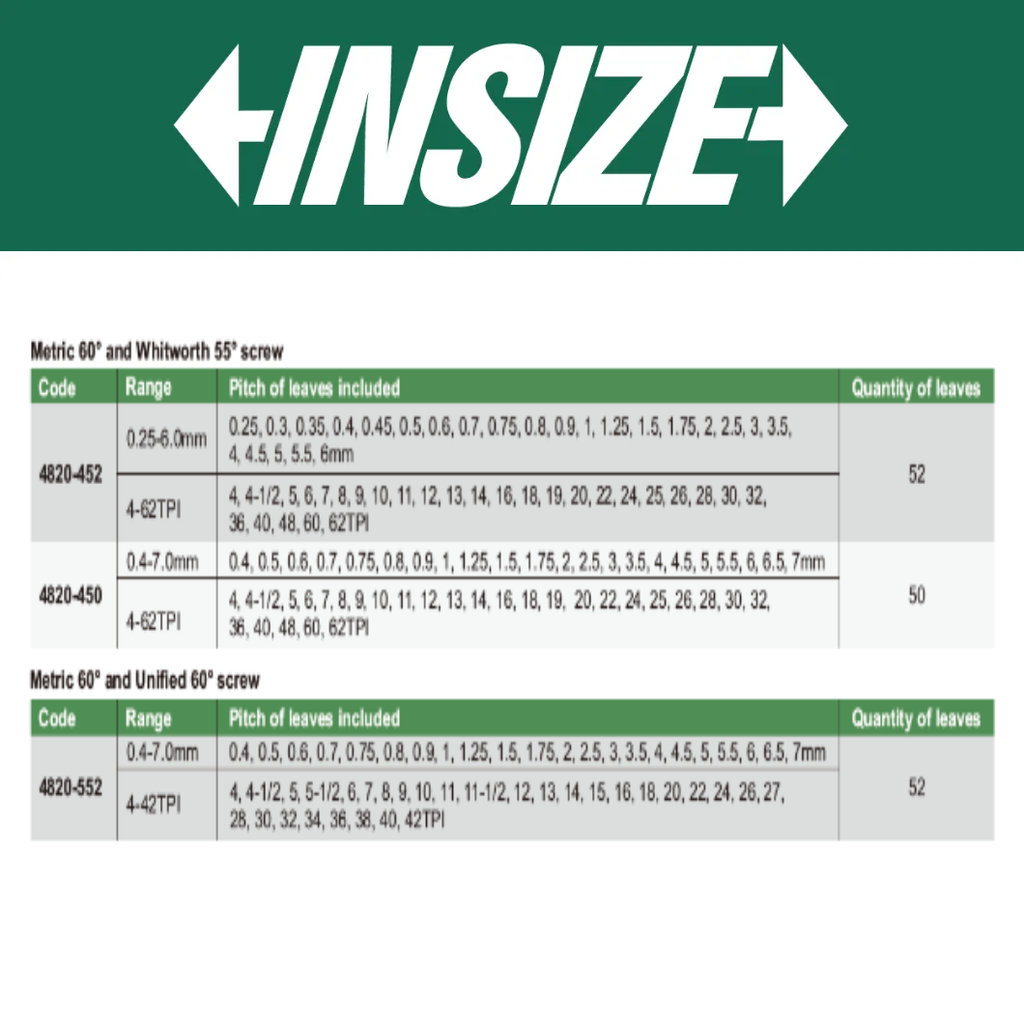

1. Model: 4820-452

• Metric 60° and Whitworth 55° Screw
• Quantity of Leaves: 52pcs
• Range: 0.25mm - 6.0mm
• Pitch of Leaves Included: 0.25, 0.3, 0.35, 0.4, 0.45, 0.5, 0.6, 0.7, 0.75, 0.8, 0.9, 1, 1.25, 1.5, 1.75, 2, 2.5, 3, 3.5, 4, 4.5, 5, 5.5, 6mm
• Range: 4 - 62TPI
• Pitch of Leaves Included: 4, 4-1/2, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 16, 18, 19, 20, 22, 24, 25, 26, 28, 30, 32, 36, 40, 48, 60, 62TPI

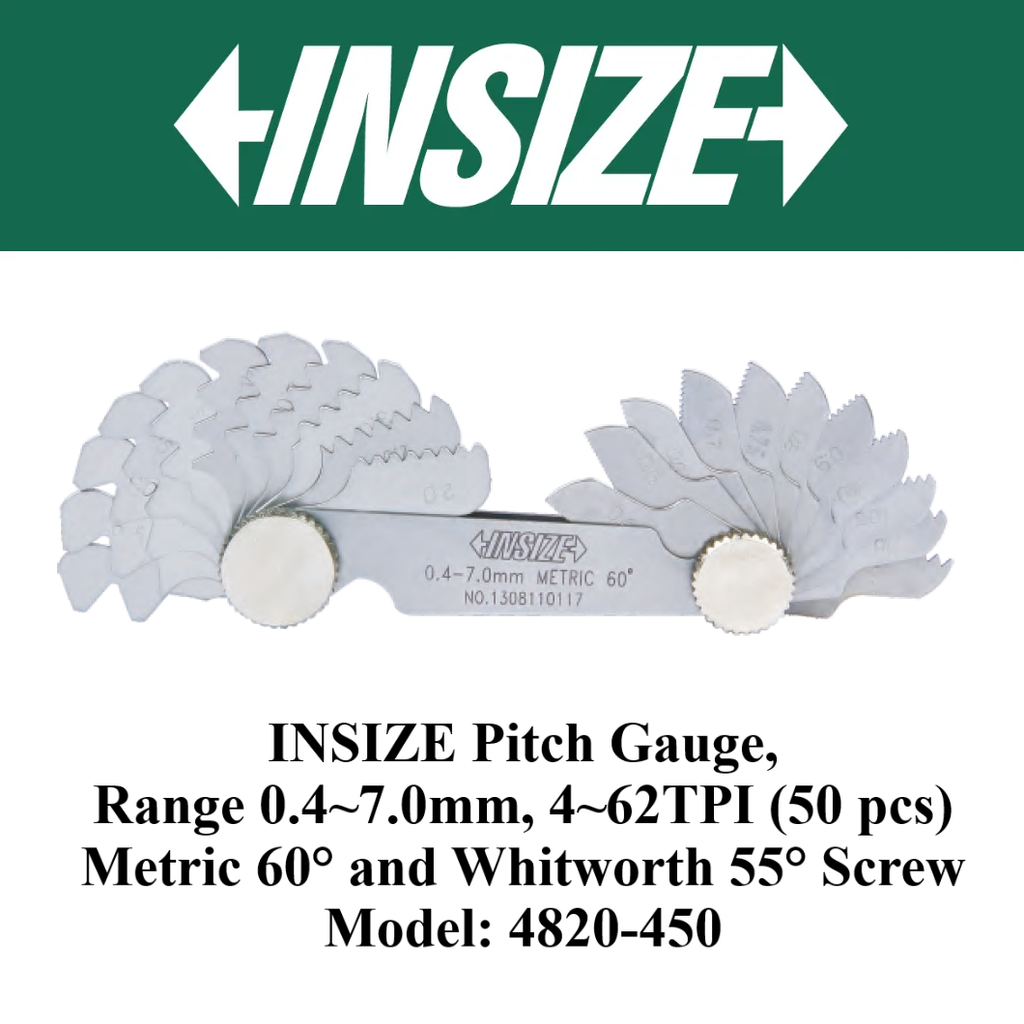

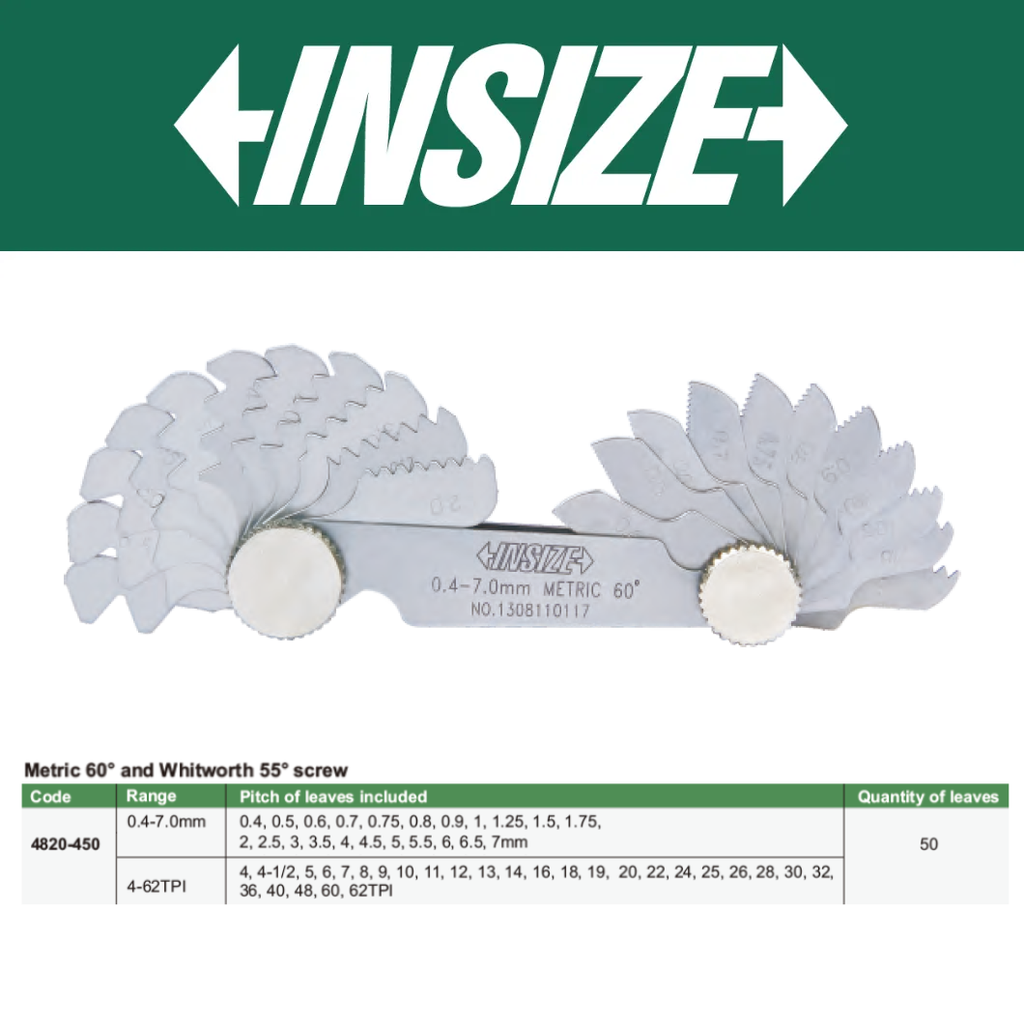

2. Model: 4820-450

• Metric 60° and Whitworth 55° Screw
• Quantity of Leaves: 50pcs
• Range: 0.4mm - 7.0mm
• Pitch of Leaves Included: 0.4, 0.5, 0.6, 0.7, 0.75, 0.8, 0.9, 1, 1.25, 1.5, 1.75, 2, 2.5,3, 3.5, 4, 4.5, 5, 5.5, 6, 6.5, 7.0 mm
• Range: 4 - 62TPI
• Pitch of Leaves Included: 4, 4-1/2, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 16, 18, 19, 20, 22, 24, 25, 26, 28, 30, 32, 36, 40, 48, 60, 62TPI

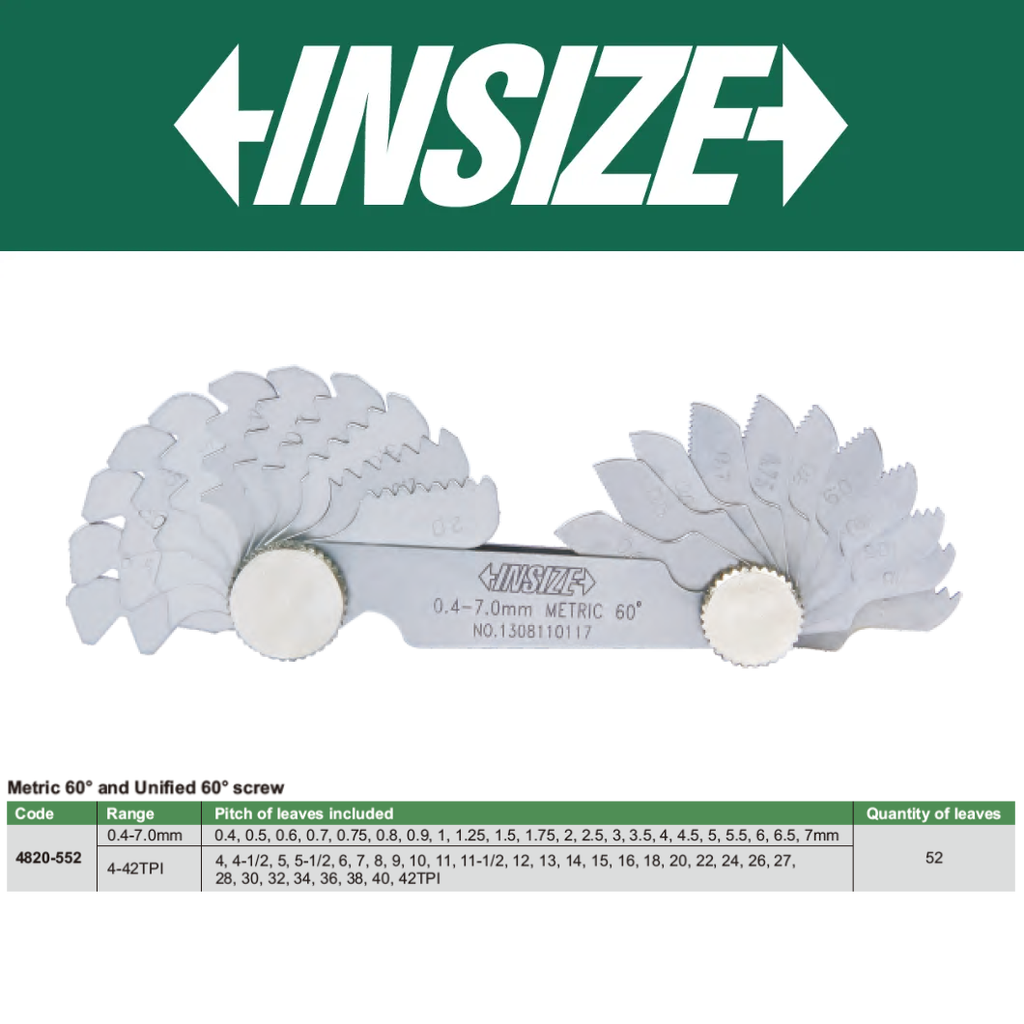

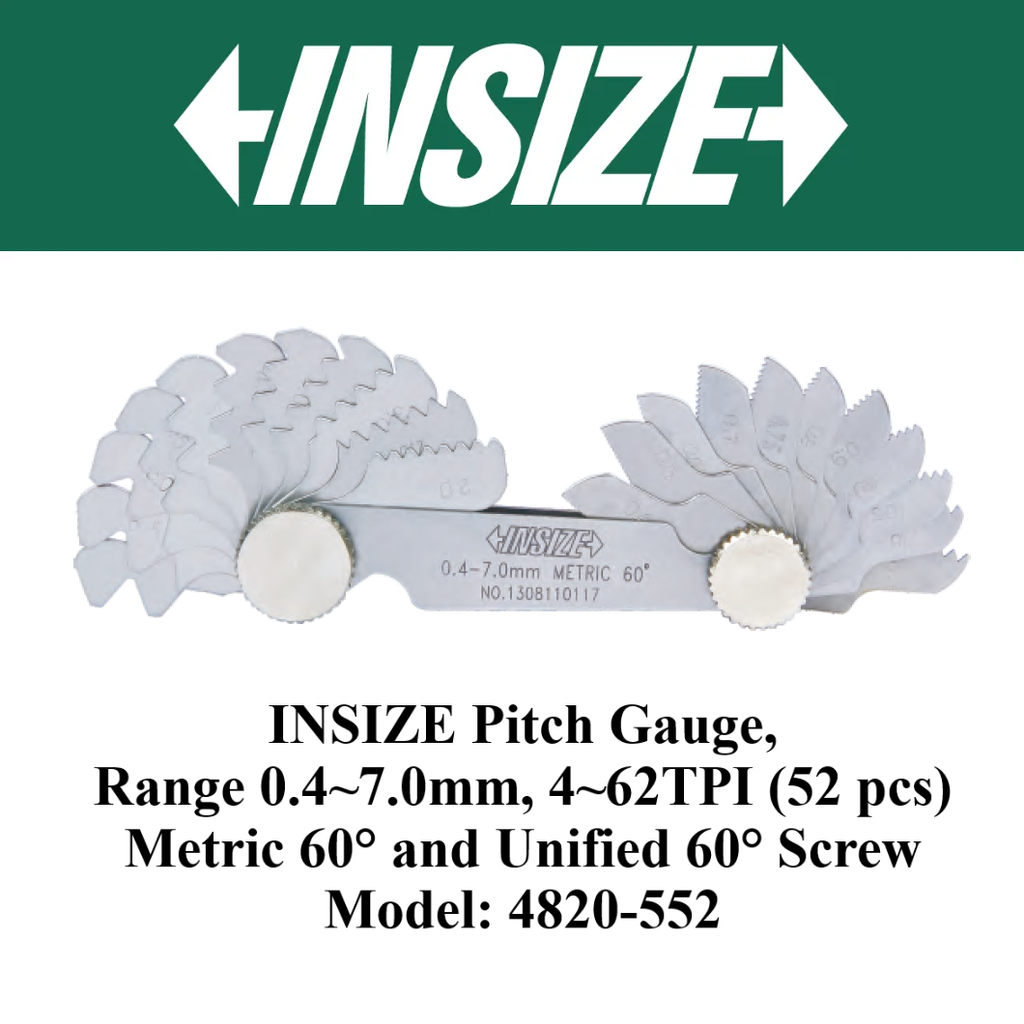

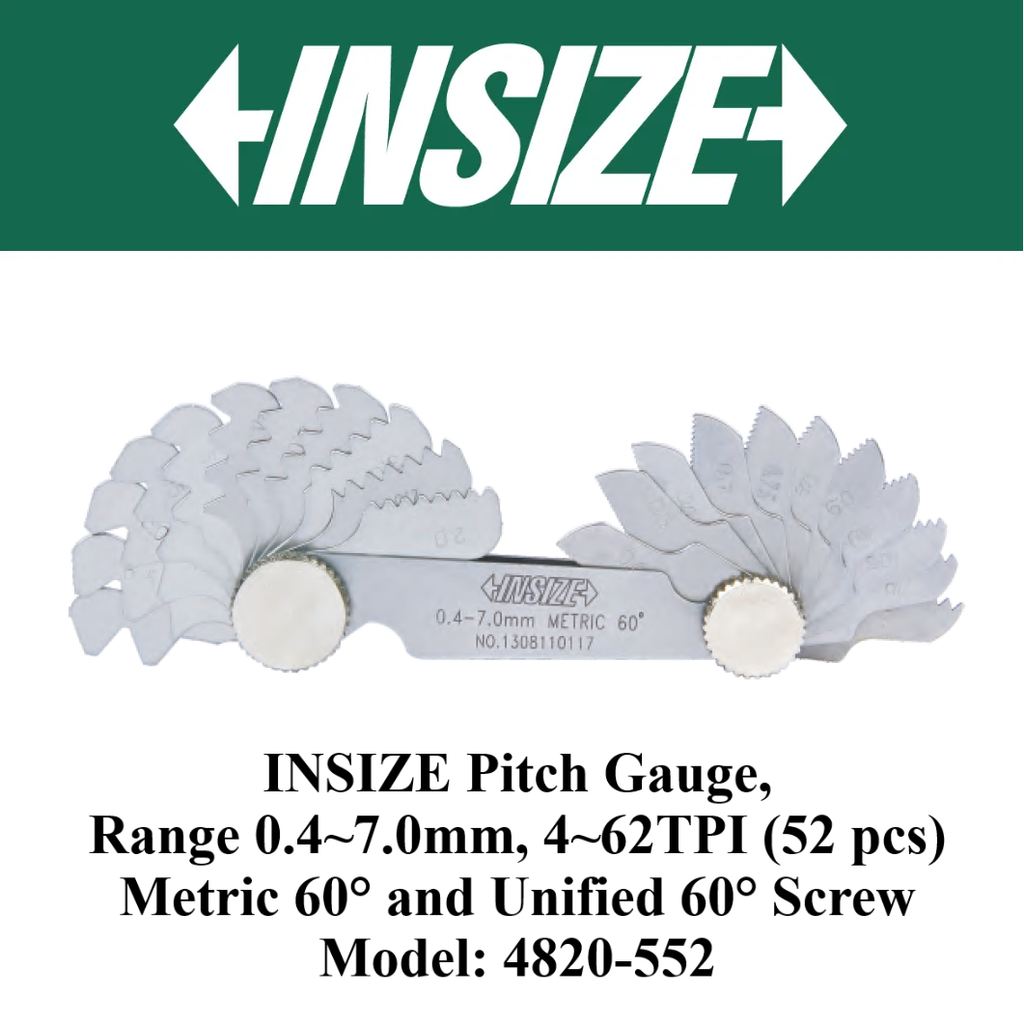

3. Model: 4820-552

• Metric 60° and Unified 60° Screw
• Quantity of Leaves: 52pcs

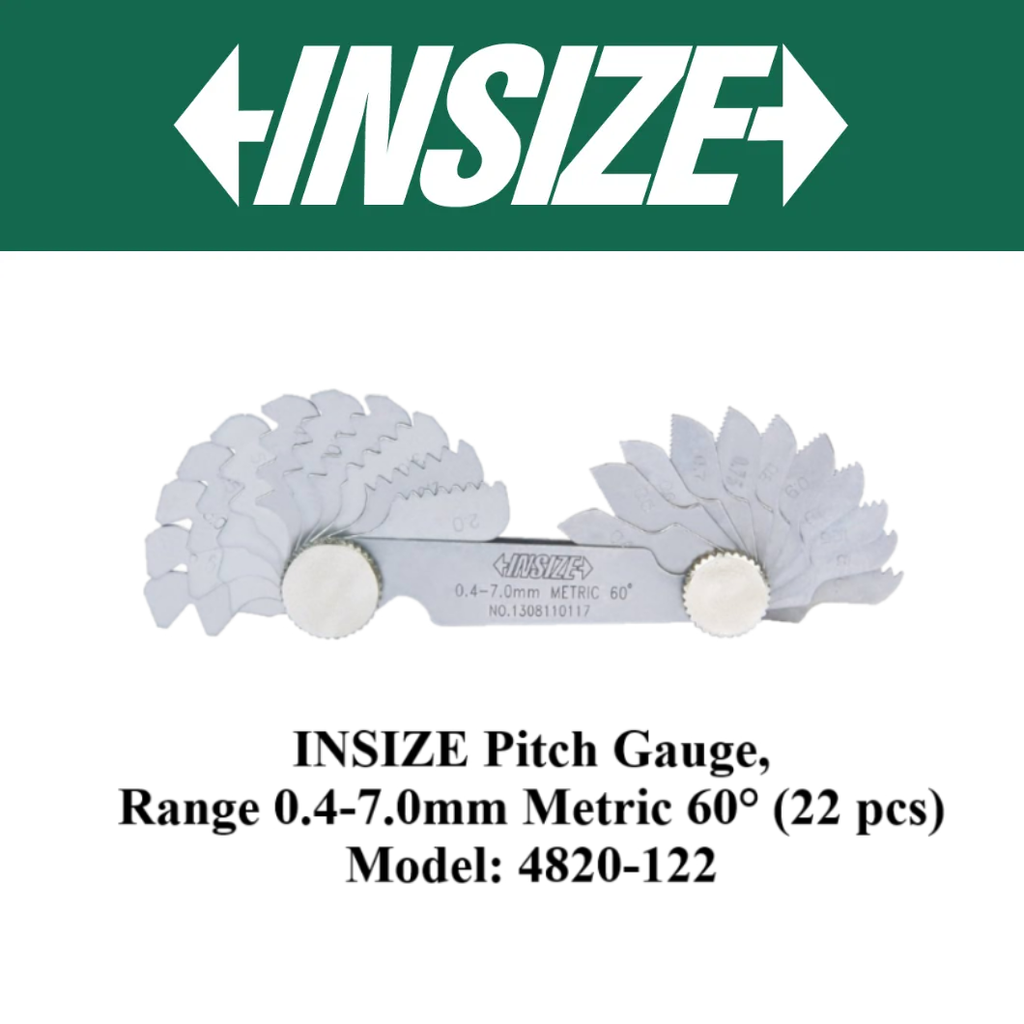

4. Model: 4820-122

• Metric: 60° Screw
• Quantity of Leaves: 22pcs
• Range: 0.4-7.0mm
• Pitch of leaves included: 0.4, 0.5, 0.6, 0.7, 0.75, 0.8, 0.9, 1, 1.25, 1.5, 1.75, 2, 2.5, 3, 3.5, 4, 4.5, 5, 5.5, 6, 6.5, 7

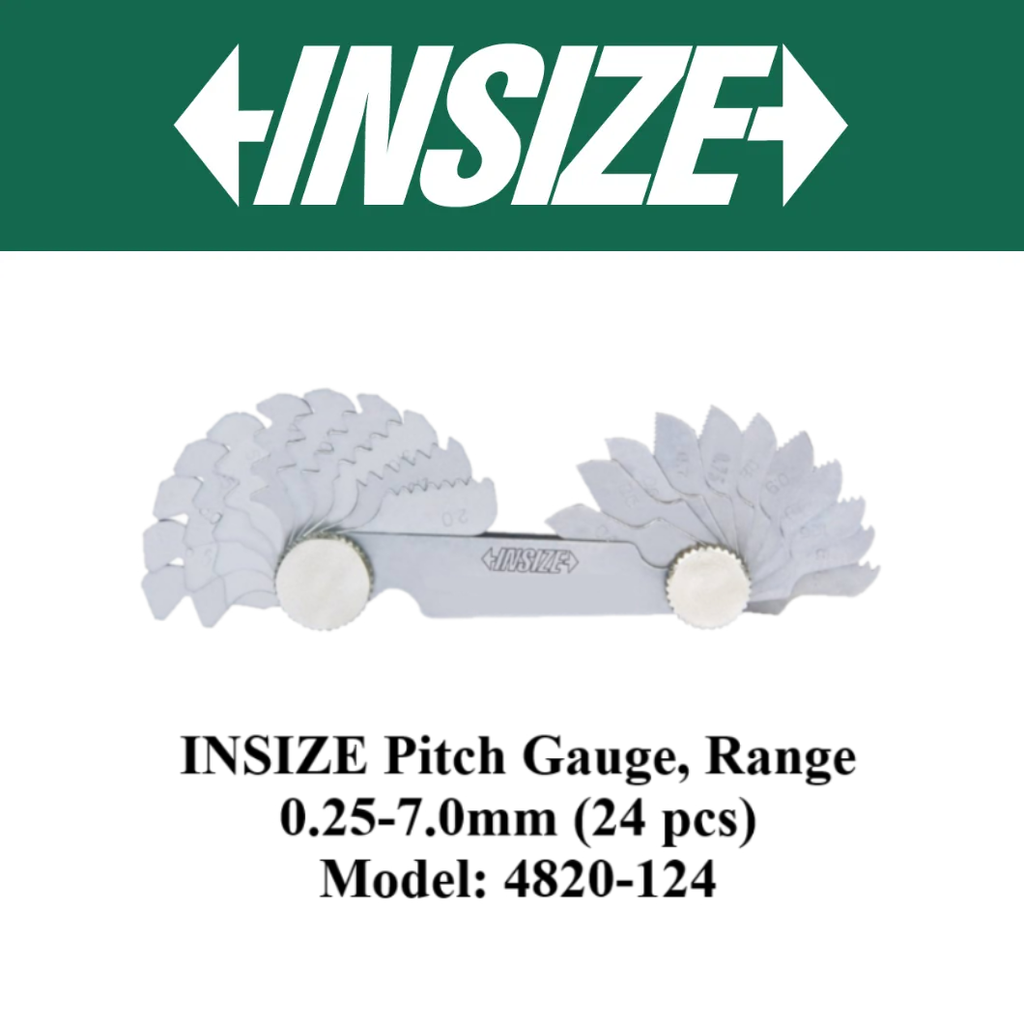

5. Model: 4820-124

• Metric: 60° Screw
• Quantity of Leaves: 24pcs
• Range: 0.25-7.0mm
• Pitch of leaves included: 0.25, 0.3, 0.35, 0.4, 0.5, 0.7, 0.75, 0.8, 0.9, 1, 1.25, 1.5, 1.75, 2, 2.5, 3, 3.5, 4, 4.5, 5, 5.5, 6, 6.5, 7

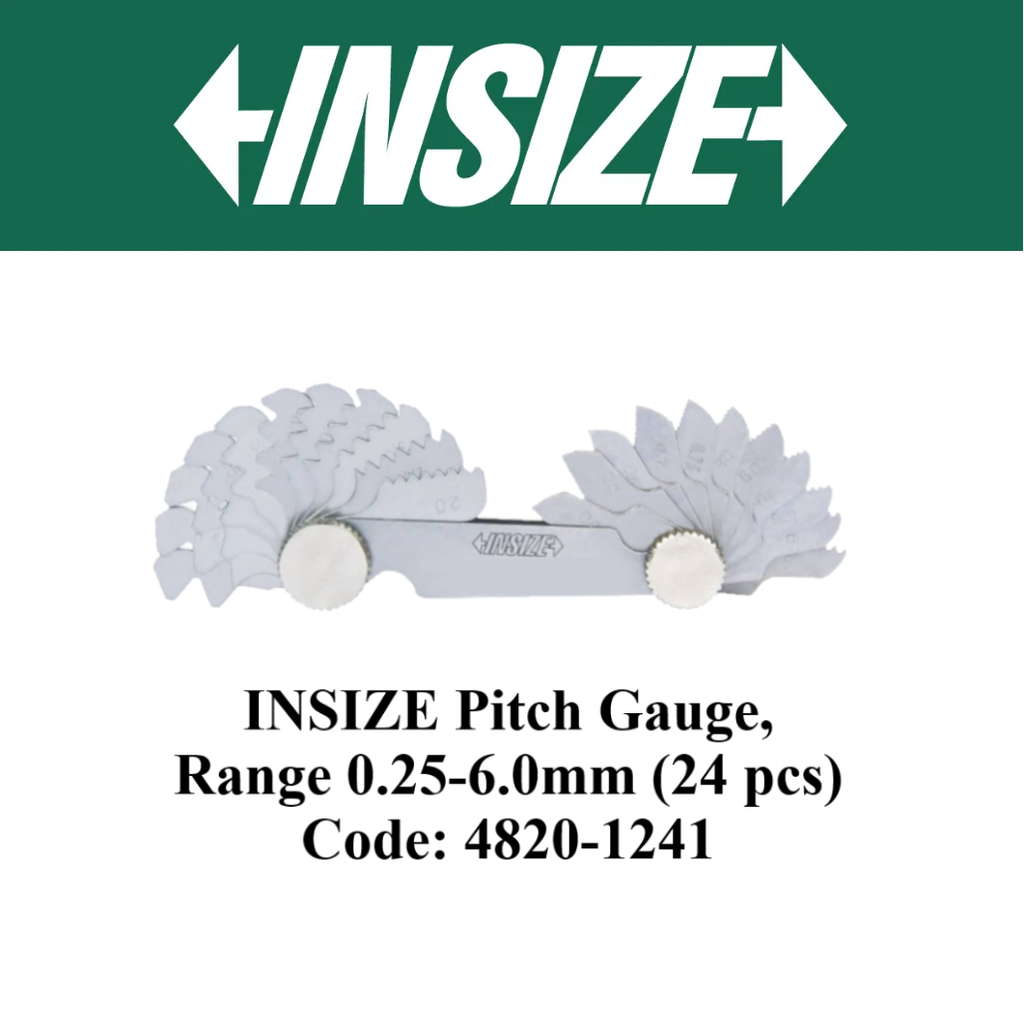

6. Model: 4820-1241

• Metric: 60° Screw
• Quantity of Leaves: 24pcs
• Range: 0.25-6.0mm
• Pitch of leaves included: 0.25, 0.3, 0.35, 0.4, 0.45, 0.5, 0.6, 0.7, 0.75, 0.8, 0.9, 1, 1.25, 1.5, 1.75, 2, 2.5, 3, 3.5, 4, 4.5, 5, 5.5, 6

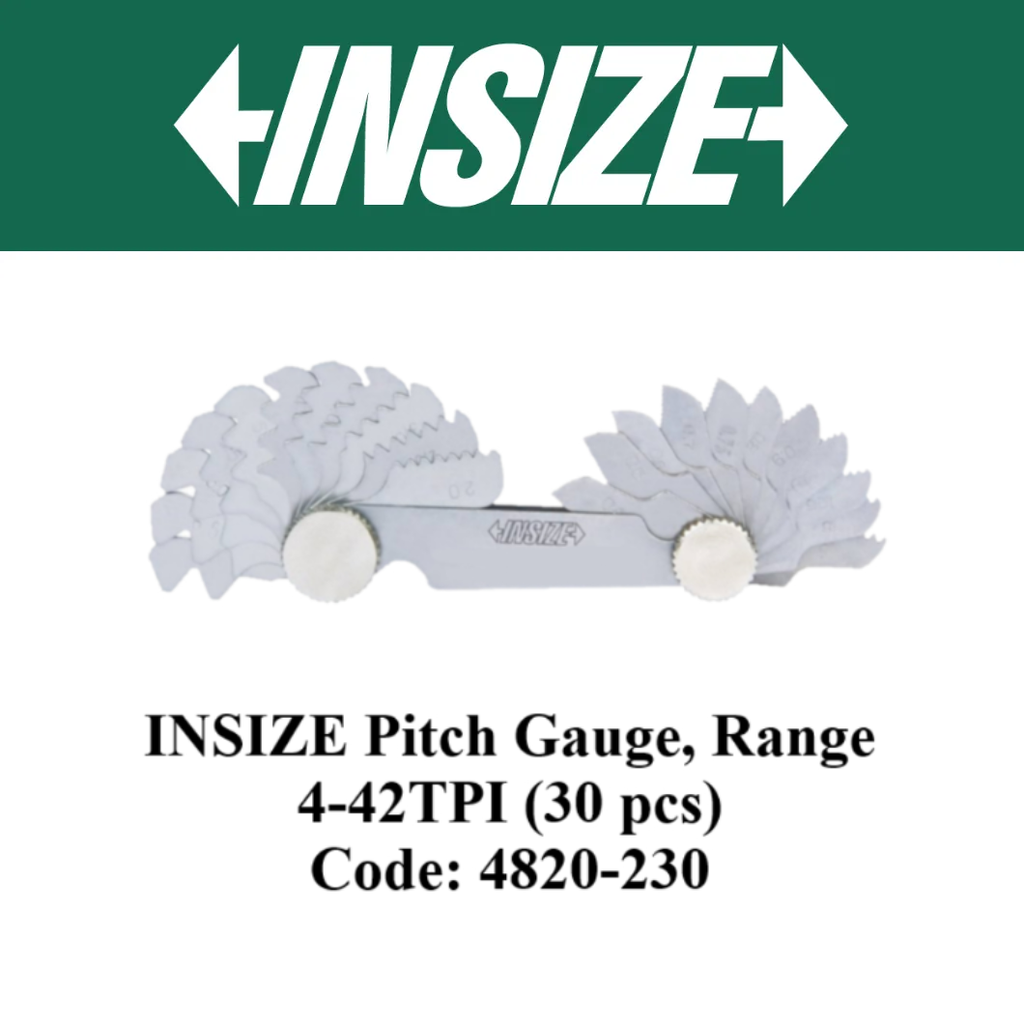

7. Model: 4820-230

• Metric: Unified 60° Screw
• Quantity of Leaves: 30pcs
• Range: 4-42TPI
• Pitch of leaves included: 4, 4-1/2, 5, 5-1/2, 6, 7, 8, 9, 10, 11, 11-1/2, 12, 13, 14, 15, 16, 18, 20, 22, 24, 26, 27, 28, 30, 32, 34, 36, 38, 40, 42TPI

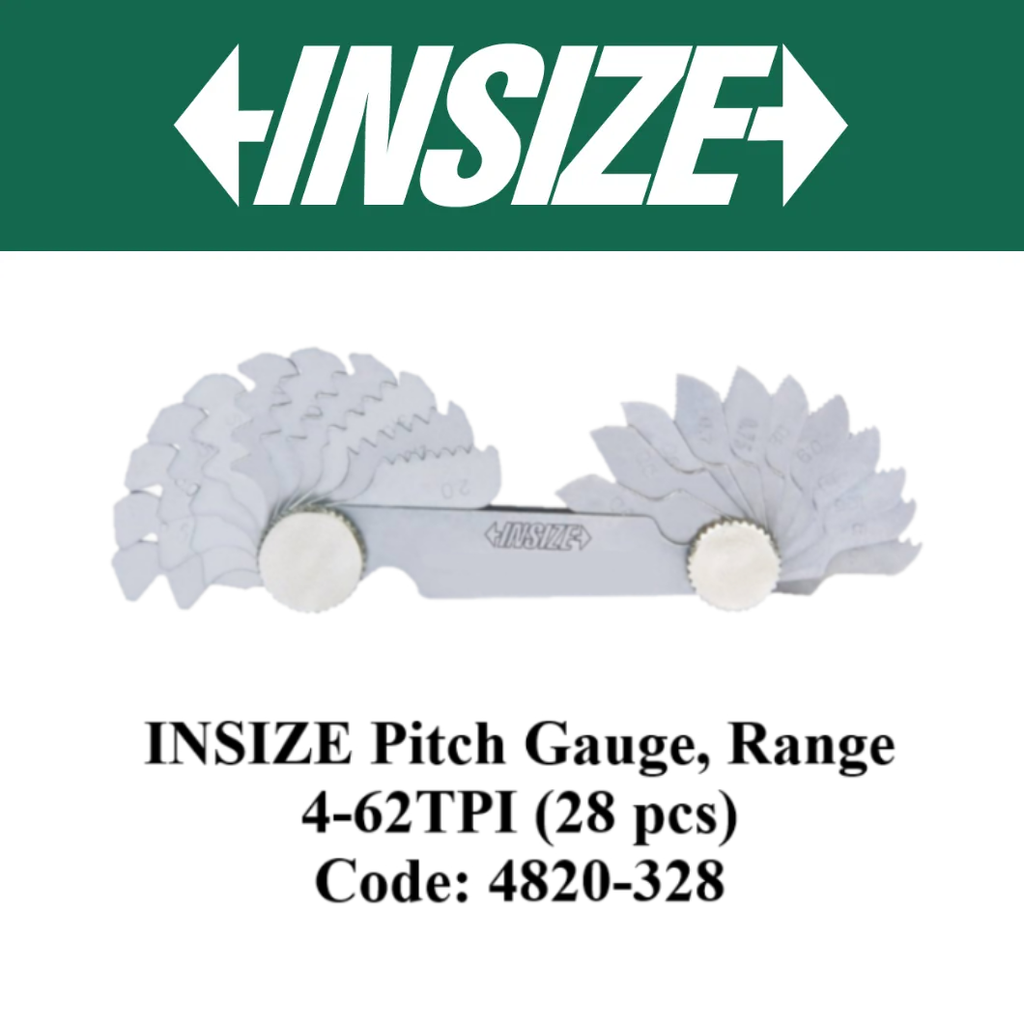

8. Model: 4820-328

• Metric: Whitworth 55° Screw
• Quantity of Leaves: 28pcs
• Range: 4-62TPI
• Pitch of leaves included: 4, 4-1/2, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 16, 18, 19, 20, 22, 24, 25, 26, 28, 30, 32, 36, 40, 48, 60, 62TPI

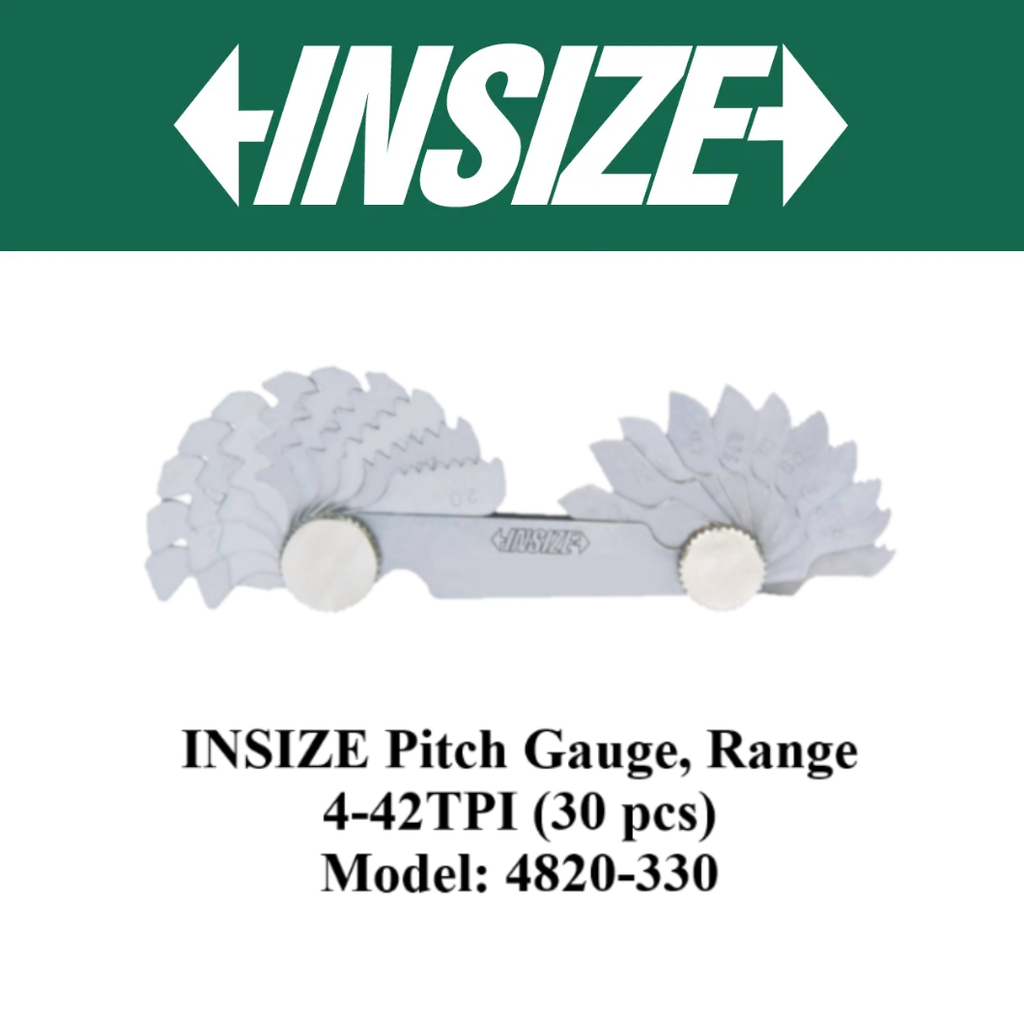

9. Model: 4820-330

• Metric: Whitworth 55° Screw
• Quantity of Leaves: 30pcs
• Range: 4-42TPI
• Pitch of leaves included: 4, 4-1/2, 5, 5-1/2, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 18, 19, 20, 22, 24, 26, 27, 28, 30, 32, 34, 36, 38, 40, 42TPI
• Range: 0.4mm - 7.0mm
• Pitch of Leaves Included: 0.4, 0.5, 0.6, 0.7, 0.75, 0.8, 0.9, 1, 1.25, 1.5, 1.75, 2, 2.5,3, 3.5, 4, 4.5, 5, 5.5, 6, 6.5, 7.0 mm
• Range: 4 - 42TPI
• Pitch of Leaves Included: 4, 4-1/2, 5, 5-1/2, 6, 7, 8, 9, 10, 11, 11-1/2, 12, 13, 14, 15, 16, 18, 20, 22, 24, 26, 27, 28, 30, 32, 34, 36, 38, 40, 42TPI
